Hyperbaric Oxygen Therapy with Portable Chambers

A comprehensive guide to at-home and clinical soft-shell HBOT — science, safety, and selection

Hyperbaric Oxygen Therapy (HBOT) involves breathing near-pure oxygen inside a pressurized enclosure, typically at 1.3 to 2.0 atmospheres absolute (ATA). Under these conditions, oxygen dissolves into the blood plasma at concentrations far exceeding what normal breathing can achieve. The result is a dramatic increase in tissue oxygenation — the biological foundation underlying the therapy’s wide range of reported benefits.Traditionally, HBOT required a rigid, hospital-grade chamber pressurized to 2.0–3.0 ATA with pure medical oxygen — expensive, immovable equipment. The emergence of portable soft-shell inflatable chambers, capable of operating at 1.3–1.5 ATA, has opened the therapy to clinical wellness centers, sports medicine facilities, and home settings. While soft-shell chambers operate at lower pressures than hard-shell units, they deliver meaningful therapeutic benefit for a growing list of conditions.

The Science: How Portable HBOT Works

HBOT mechanism diagram

Figure 1 — Under normal breathing, oxygen is transported almost entirely by red blood cells. During HBOT, elevated partial pressure forces additional oxygen to dissolve directly into blood plasma, dramatically increasing total oxygen delivery.

Henry’s Law and Dissolved Oxygen

The mechanism rests on Henry’s Law: the amount of gas dissolved in a liquid is directly proportional to the partial pressure of that gas above the liquid. At 1.5 ATA breathing 100% oxygen, plasma oxygen content rises by approximately 10-fold compared to normal atmospheric conditions, allowing oxygen to reach tissues that may be hypoxic due to poor circulation, injury, or inflammation.

Cellular and Physiological Effects

The downstream effects of elevated tissue oxygen include:

Angiogenesis — stimulation of new blood vessel growth in damaged areas
Fibroblast activation — accelerated collagen synthesis for wound repair
Immune modulation — reduction of systemic and local inflammation
Neuroplasticity support — improved cerebral oxygenation and metabolic activity
Stem cell mobilization — increases circulating stem cells by up to 800%
Antimicrobial effects — high oxygen tension is toxic to anaerobic bacteria

Anatomy of a Portable Hyperbaric Chamber

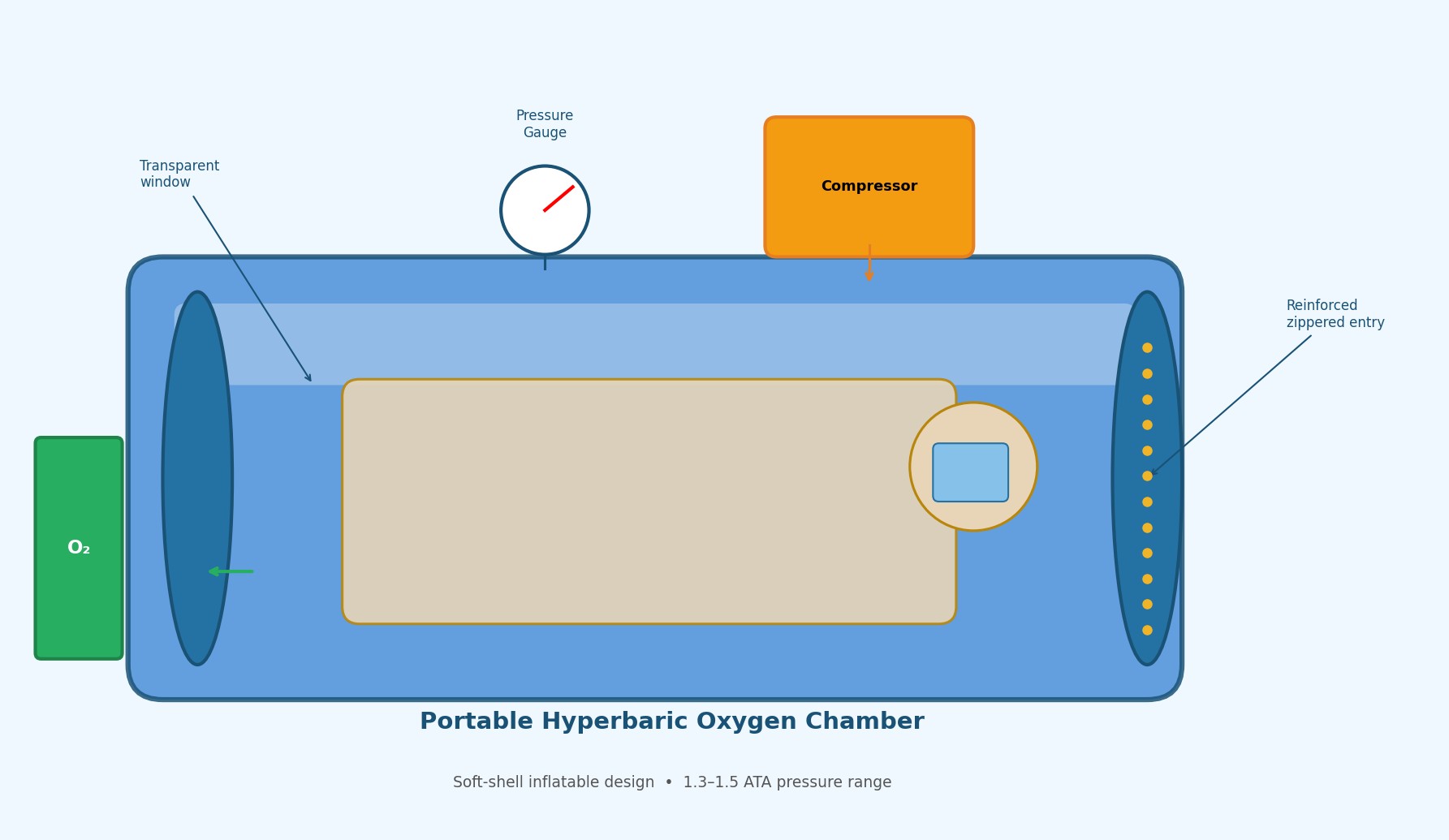

Portable hyperbaric chamber diagram

Figure 2 — Key components of a modern portable soft-shell hyperbaric chamber: inflatable body, zippered entry door, oxygen supply line, pressure gauge, and external air compressor.

Construction and Materials

Modern portable chambers are constructed from multi-layer urethane-coated nylon or reinforced PVC with welded seams capable of sustaining pressures up to 1.5 ATA. A large-diameter airtight zipper — engineered for aerospace and diving applications — forms the entry and exit point. Most models include at least one transparent acrylic or polyurethane window to reduce claustrophobia and allow communication.

Oxygen Delivery System

An external electric air compressor inflates the chamber to target pressure. Oxygen is introduced via a separate line connected to either an oxygen concentrator (producing 90–96% pure O₂) or a pressurized medical oxygen cylinder. Inside the chamber, the user breathes through a soft non-rebreather mask or a hood delivery system. Flow rates of 8–10 liters per minute are typical at 1.3–1.5 ATA.

Pressure and Safety Controls

Every compliant chamber incorporates a calibrated pressure gauge and an adjustable pressure relief valve, which automatically vents excess pressure and prevents over-pressurization. A manual deflation valve allows the user or an attendant to quickly reduce pressure. Modern units also feature an internal pressure release that the occupant can activate from inside.

A Typical Session: Step-by-Step Protocol

HBOT session timeline

Figure 3 — Standard session timeline for portable HBOT, showing the pressurization, treatment, and depressurization phases with corresponding chamber pressure (red line).

Pre-session setup10–15 min

Inspect chamber seams and zipper. Check O₂ supply level and connections. Remove metal objects, electronics, and synthetic fabrics. Hydrate well beforehand.

Pressurization10–15 min

Inflate chamber gradually. Equalize ear pressure frequently using yawning, swallowing, or the Valsalva maneuver. Slow down if discomfort occurs.

Oxygen delivery begins5 min

Don the oxygen mask or hood. Confirm adequate flow rate (8–10 L/min). Verify a comfortable seal before settling in.

Treatment phase45–90 min

Rest, read, or sleep at target pressure (1.3–1.5 ATA) while breathing 100% O₂. Maintain steady, relaxed breathing throughout.

Slow depressurization10–20 min

Gradually reduce chamber pressure. Continue oxygen delivery if comfortable. Allow ears to equalize naturally.

Post-session recovery10–15 min

Hydrate and rest quietly. Document the session (pressure reached, duration, any symptoms). Wait at least 2 hours before vigorous exercise.

Conditions Treated and Clinical Benefits

HBOT therapeutic applications map

Figure 4 — Major therapeutic applications of portable hyperbaric oxygen therapy, spanning sports recovery, wound healing, neurological support, and anti-aging applications.

Wound Healing

HBOT is most firmly established in wound care. Chronic non-healing wounds — diabetic foot ulcers, radiation-induced tissue injury, and refractory osteomyelitis — respond well to serial sessions. Studies consistently demonstrate accelerated closure rates and reduced amputation risk in diabetic ulcer patients treated with HBOT alongside standard wound care protocols.

Sports and Athletic Recovery

Elite athletes increasingly use portable chambers for post-competition recovery. The anti-inflammatory effects and accelerated lactic acid clearance reduce delayed-onset muscle soreness (DOMS). Multiple professional sports teams integrate HBOT into recovery programs, citing reduced time to return-to-play following muscle strains and ligament injuries.

Neurological and Cognitive Applications

Emerging evidence supports HBOT for traumatic brain injury (TBI), post-COVID neurological symptoms (long COVID), post-stroke recovery, and neurodevelopmental conditions including autism spectrum disorder. Improved cerebral oxygen delivery and reduction of neuroinflammation are proposed as the primary mechanisms.

A 2023 randomized controlled trial found that 60 sessions of HBOT at 1.5 ATA significantly improved cognitive function, memory, and quality of life in long-COVID patients with persistent neurological symptoms compared to sham controls.

Immune System Modulation

By reducing systemic oxidative stress and modulating inflammatory cytokines, HBOT supports balanced immune function. Applications include recovery from chronic infections, autoimmune flares, and post-surgical inflammation management.

Anti-Aging and Longevity

Recent Israeli research demonstrated that repeated HBOT sessions induced telomere elongation — a reversal of a key cellular aging marker — and reduced senescent cell burden in healthy older adults. While these findings are preliminary, they have ignited significant interest in HBOT within the longevity medicine community.

Conclusion

Portable hyperbaric oxygen therapy represents a meaningful evolution in accessible medicine. While lower pressures than rigid hard-shell chambers limit certain acute indications, the 1.3–1.5 ATA range achieves substantial increases in tissue oxygen delivery sufficient for wound support, athletic recovery, neurological benefit, and immune modulation.

As research continues to accumulate — particularly in long COVID, TBI rehabilitation, and aging — portable HBOT is poised to become an increasingly mainstream therapeutic tool. Prospective users are encouraged to consult a qualified healthcare provider, obtain a thorough medical evaluation, and purchase only FDA-cleared or CE-marked devices from reputable manufacturers.

With appropriate supervision and adherence to safety protocols, portable HBOT offers a compelling, evidence-informed option for accelerated healing and enhanced wellness.
